Remote Bioethanol Burner 1000mm
The Remote Bioethanol Burner 1000, 6.2Kw, Bio Ethanol Ribbon Burner Tray with Remote Control. The bio ethanol remote ribbon burner is operated by remote control handset to light and shut off the flame. Capacity 12 litres, 11-13 hour burn time on full, powered by 240v mains power adaptor. OUR REMOTE CONTROL BIOETHANOL BURNERS ARE AVAILABLE WITH A WIDE RANGE OF STANDARD SINGLE AND DOUBLE SIDED ENCLOSURES MAKING INSTALLATION EASY – ASK FOR DETAILS. Minimum enclosure size 1300(W) X 500(H) X 320(D). Minimum room size of 90m³ required.
Remote Bioethanol Burner 1000mm
Additional information
| Air Vent | We recommend a source of fresh air ventilation. |
|---|---|
| Fuel Type | DeNatured Bioethanol Fuel |
| Efficiency Rating | 100% |
Remote Bioethanol Burner 1000mm PDF Specification Sheet
Description
- Dimensions: 1000 X 240 X 215mm
- Cut Out Size: 985 x 225 x 150mm
- Use in rooms of 90 m3 or larger
- Tray Capacity: 12 Litres
- Burn Time: 11-13 Hours
- Heat Output 6.2Kw
- Fuel Usage: 0.9 litre/hour
- Net Weight: 24.0 kg
- Gross Weight: 27.0 kg
- Construction: High Quality Stainless Steel
IMPORTANT NOTES:

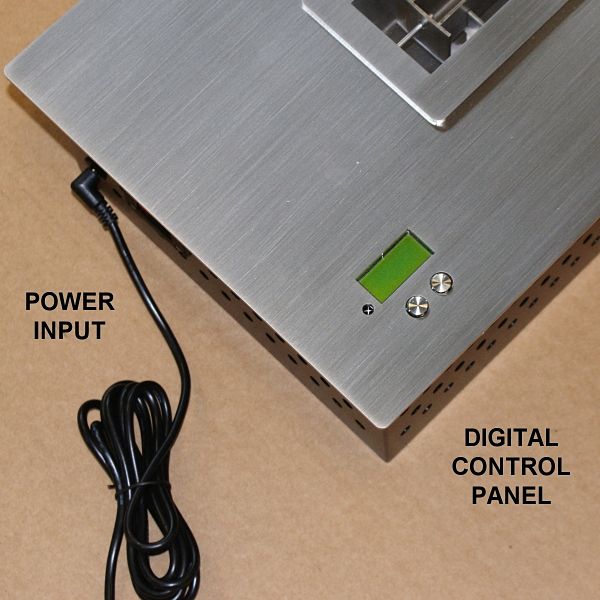

Power Adapter – The fire uses a 240v power adapter which is connected on the left side of the remote burner. This is supplied with a UK plug. A 240v fused socket must be designed into the fireplace design to allow the power adapter to be connected to the remote burner. This 240v socket and the adapter must be accessible at all times to allow for servicing and replacement.
Enclosure design – If choosing to design your own enclosure this must be designed with a void to the rear which is accessible at all times to allow access to the power supply. See images of power adapter connection. We can supply a standard enclosure with this provision already made. Bespoke sizes can also be made within our strict guidelines.
Ordering: These remote burners are made to order and have a delivery of 8 weeks from date of order. There is a 50% cancellation charge on these remote items as they are sold as “made to order” items. To order call 01325-301020 and speak to our technical sales team.
Fireplace Design: The remote burner must be fitted within a non-combustible fireplace opening with the correct distances to combustible materials. If in doubt at least 1.5m should be maintained at all times from the flame to a combustible surface. Care should be taken in placing soft furnishings and curtains near the remote burner. If the remote burner is used in an open setting the flame will be affected by air movement and in such cases the remote fireplace should be designed with glass guards.
Lighting Process: The remote control handset is used to switch on the bioethanol ribbon fire burner and the fuel pump starts moving the fuel to the burner slot. After 30 seconds the burner ignites the fuel and a beautiful ribbon of flame is developed from the remote burner slot. When it is time to switch off the flame the handset is used to stop the fuel supply to the remote burner slot, once this is exhausted the flame will go out. Note when turned off the fuel will carry on burning until the flame tray is exhausted, it takes about 5 minutes. The remote control handset only turns the remote bioethanol fire on and off, it does not vary the flame.
